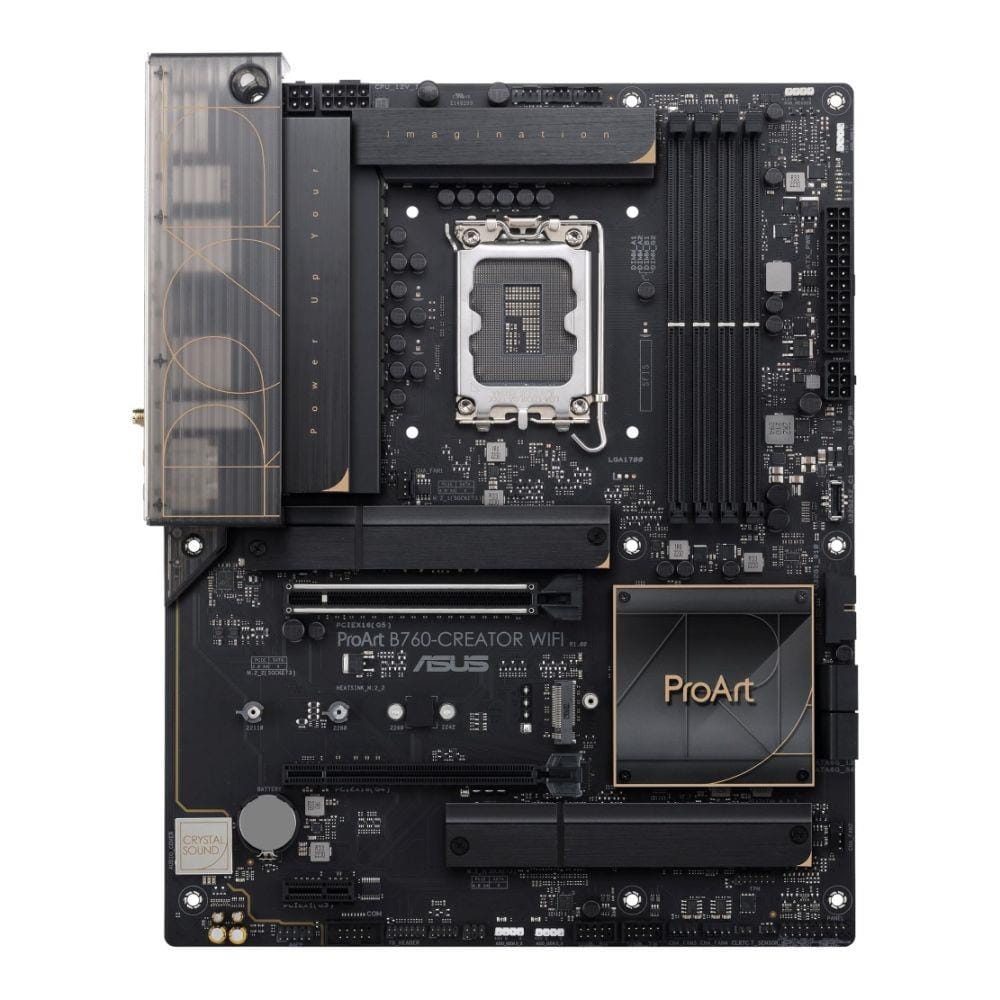

Płyta Asus ProArt B760-CREATOR WIFI /B760/DDR5/SATA3/M.2/USB3.2/WiFi/BT/PCIe5.0/s.1700/ATX
Dostępność:
10+ szt.
Wysyłka w:
Natychmiast
Opis
Płyta Asus ProArt B760-CREATOR WIFI
Obsługiwane typy procesorów
Intel Celeron™ (Socket 1700), Intel Core i3 12th Generation, Intel Core i3 13th Generation, Intel Core i5 12th Generation, Intel Core i5 13th Generation, Intel Core i7 12th Generation, Intel Core i7 13th Generation, Intel Core i9 12th Generation, Intel Core i9 13th Generation, Intel Pentium™ (Socket 1700)
Uwagi do pamięci RAM
Non-ECC, Un-buffered Memory, OptiMem II, Supported memory types, data rate (speed), and number of DRAM modules, Supports Intel® Extreme Memory Profile (XMP), information site or visit https://www.asus.com/support/, please refer to CPU/Memory Support list under the Support tab of product, vary depending on the CPU and memory configuration, for more information
Uwagi do kontrolera SATA
- 4 x SATA 6Gb/s ports, - M.2_1 slot (Key M), type 2242/2260/2280/22110, - M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode), - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), Intel® 13th & 12th Gen Processors:, Intel® B760 Chipset:, Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10, M.2_2 slot shares bandwidth with PCIe X1 and WiFi module and will run, PCIe 3.0 x2 by default. You need to set M.2_2 running at PCIe 3.0 x4 by, by manually enabled in BIOS
Uwagi do złącz PCI
- 1 x PCIe 3.0 x1 slot, - 1 x PCIe 4.0 x16 slot (supports x4 mode), - 1 x PCIe 5.0/4.0/3.0 x16 slot, Intel® 13th & 12th Gen Processors:, Intel® B760 Chipset:, PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2, runs at PCIe x4 mode by manually enabled
Obsługiwane typy procesorów
Intel Celeron™ (Socket 1700), Intel Core i3 12th Generation, Intel Core i3 13th Generation, Intel Core i5 12th Generation, Intel Core i5 13th Generation, Intel Core i7 12th Generation, Intel Core i7 13th Generation, Intel Core i9 12th Generation, Intel Core i9 13th Generation, Intel Pentium™ (Socket 1700)
Uwagi do pamięci RAM
Non-ECC, Un-buffered Memory, OptiMem II, Supported memory types, data rate (speed), and number of DRAM modules, Supports Intel® Extreme Memory Profile (XMP), information site or visit https://www.asus.com/support/, please refer to CPU/Memory Support list under the Support tab of product, vary depending on the CPU and memory configuration, for more information
Uwagi do kontrolera SATA
- 4 x SATA 6Gb/s ports, - M.2_1 slot (Key M), type 2242/2260/2280/22110, - M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode), - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), Intel® 13th & 12th Gen Processors:, Intel® B760 Chipset:, Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10, M.2_2 slot shares bandwidth with PCIe X1 and WiFi module and will run, PCIe 3.0 x2 by default. You need to set M.2_2 running at PCIe 3.0 x4 by, by manually enabled in BIOS
Uwagi do złącz PCI
- 1 x PCIe 3.0 x1 slot, - 1 x PCIe 4.0 x16 slot (supports x4 mode), - 1 x PCIe 5.0/4.0/3.0 x16 slot, Intel® 13th & 12th Gen Processors:, Intel® B760 Chipset:, PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2, runs at PCIe x4 mode by manually enabled
Dane techniczne
| Baza SCIP | Nie |
| Nazwa typu | Płyty główne |
| Gniazdo procesora | Socket 1700 |
| Uwagi do procesora | Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types, Max Technology 3.0**, Refer to www.asus.com for CPU support list, Supports Intel® 10 nm CPU, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost |
| Format płyty | ATX |
| BIOS | 128 Mb WOL by PME, PXE |
| Chipset płyty głównej | Intel® B760 |
| Maksymalna wielkość pamięci | 192 GB |
| Tryb pracy pamięci RAM | Dual Channel |
| Zintegrowany kontroler SATA | Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2 |
| Wbudowana karta graficzna | Brak lub Intel® UHD Graphics 730/750/770/Iris Xe (zależy od procesora) |
| Gniazda karty graficznej | DisplayPort, HDMI |
| Uwagi do karty graficznej | Graphics specifications may vary between CPU types, Please refer to www.intel.com for any updates, Support max. 8K@60Hz as specified in DisplayPort 1.4, Supports 4K@60Hz as specified in HDMI 2.1 |
| Zintegrowana karta dźwiękowa | Realtek ® 7.1 Surround Sound High Definition Audio CODEC |
| Gniazda karty dźwiękowej | 5x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu |
| Uwagi do karty dźwiękowej | Audio cover, Dedicated audio PCB layers, Premium audio capacitors, Supports up to 24-Bit/192 kHz playback, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Unique de-pop circuit |
| Złącza PCI Express x16 | 2 |
| Złącza PCI Express x1 | 1 |
| Port LAN | 1x 1 Gigabit LAN Intel®, 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®) |
| Maksymalna ilość portów USB 2.0 | 8 |
| Maksymalna ilość portów USB 3.x | 9 |
| Porty USB na panelu tylnym | 4x USB 2.0 + 4x USB 3.0 + 1x USB 3.1 + 1x USB 3.1 Type-C |
| Gniazda USB na płycie głównej | 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port) |
| Port Wi-Fi | IEEE 802.11a/b/g/n/ac/ax |
| Port Bluetooth | Bluetooth V5.2 |
| Port szeregowy (COM) | 1x wewnętrzne gniazdo portu COM |
| Port równoległy (LPT) | Brak |
| Gniazdo zasilania | ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin) + PCIe (6-pin) |
| Wymiary [S x W] (mm) | 305 x 244 |
| Opakowanie | BOX |
| Wyposażenie dodatkowe | 1 x ACC Express Activation Key Card, 1 x ASUS Wi-Fi moving antennas, 1 x ProArt ruler, 1 x Q-connector, 1 x User guide, 2 x M.2 Rubber packages, 2 x SATA 6Gb/s cables |
| Cechy | ProArt B760-CREATOR WIFI;ATX |
| Informacje dodatkowe | Operating System: Windows® 11, Windows® 10 64-bit |
| Okres rękojmi w miesiącach | 36 |
| Miejsce serwisowania | Incom Group SA |
| Ilość złącz pamięci DDR5 | 4 |
| Strona o towarze | https://www.asus.com/motherboards-components/motherboards/proart/proart-b760-creator-wifi/techspec/ |
| Inne porty i gniazda | 3x Addressable Gen 2 header, 4-pin AIO Pump header, 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4x 4-pin Chassis Fan headers, AURA RGB header, Clear CMOS header, SPI TPM header (14-1pin), Thermal Sensor header, Thunderbolt header |
