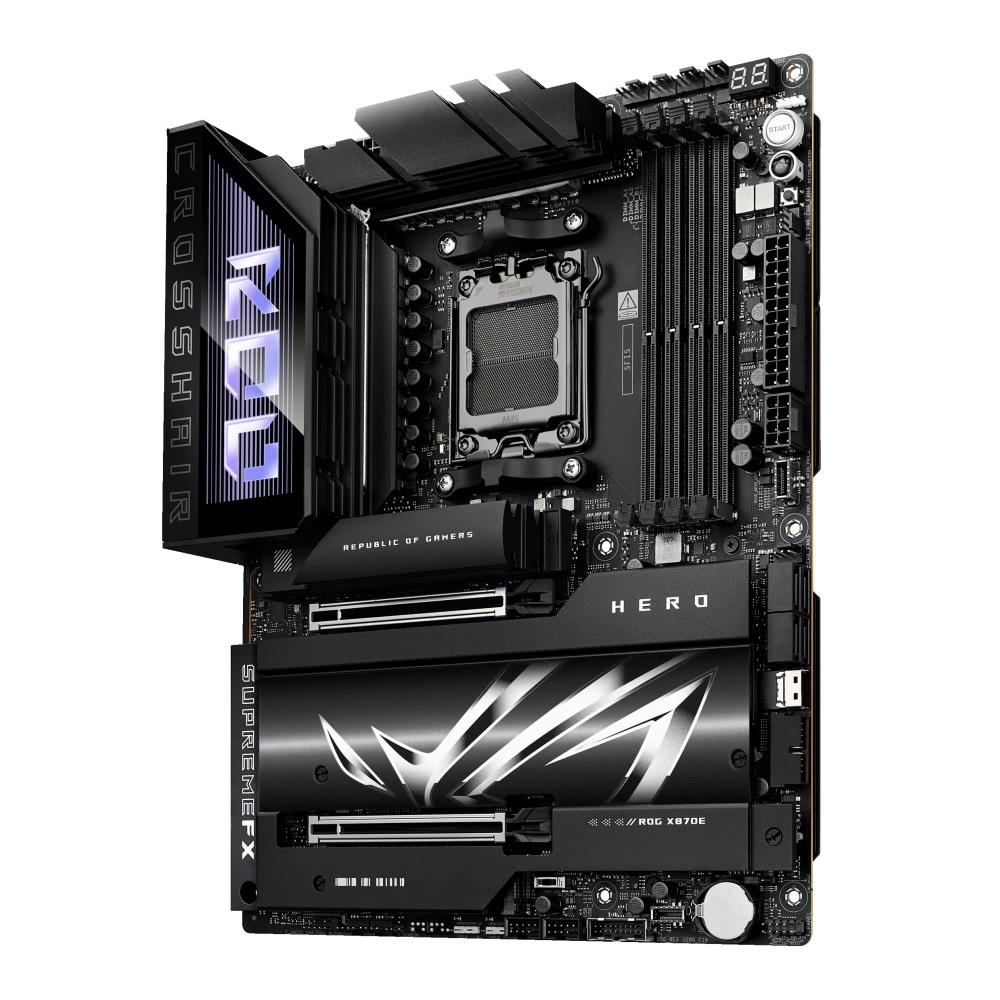

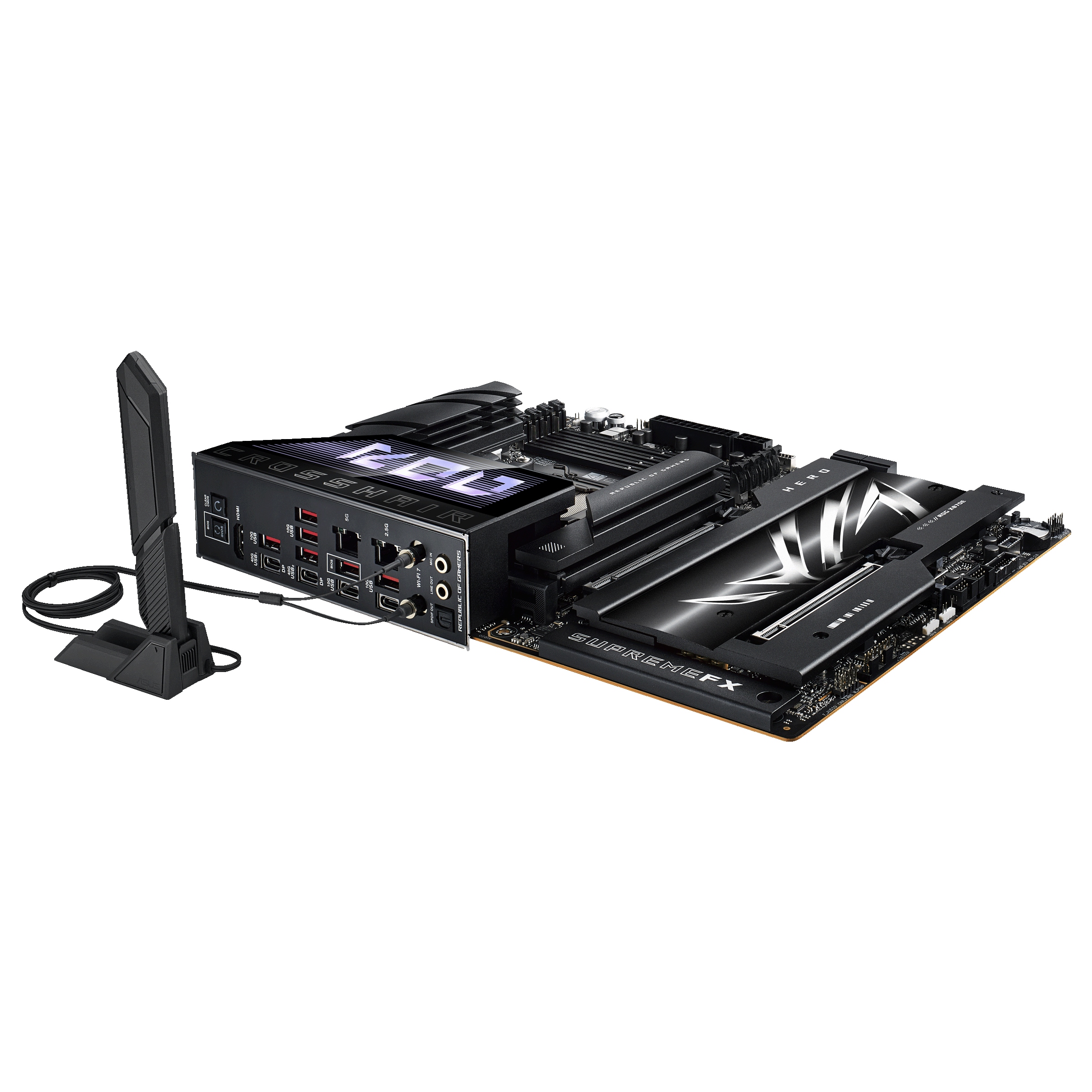

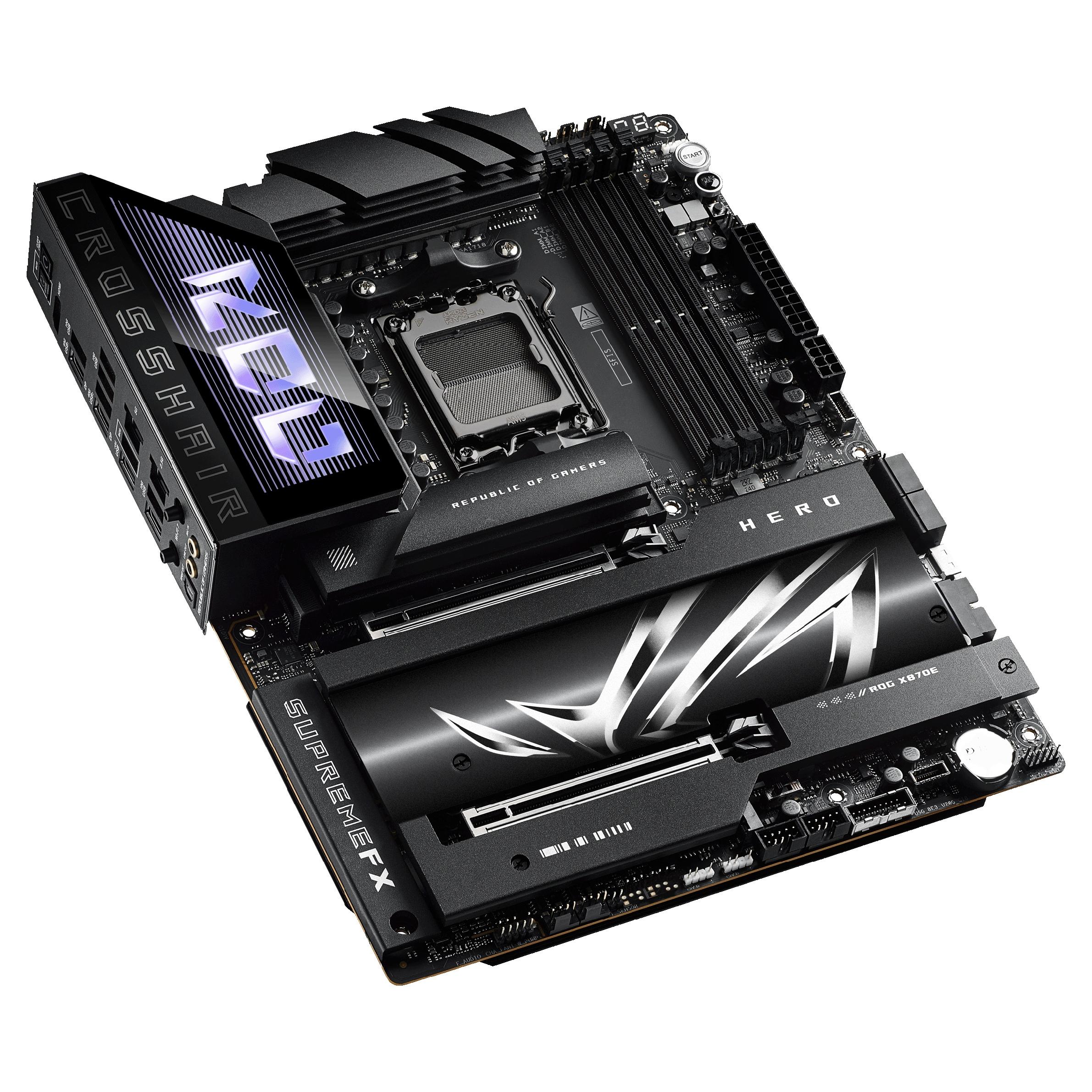

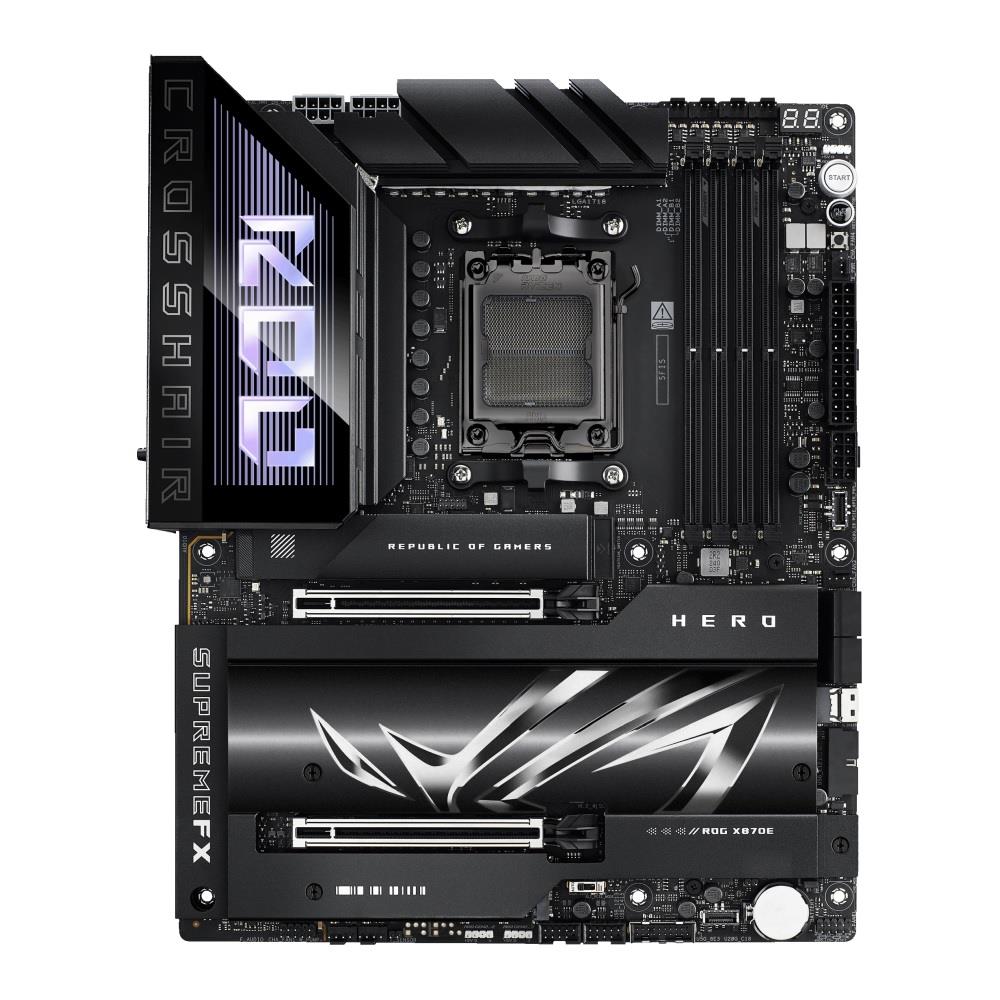

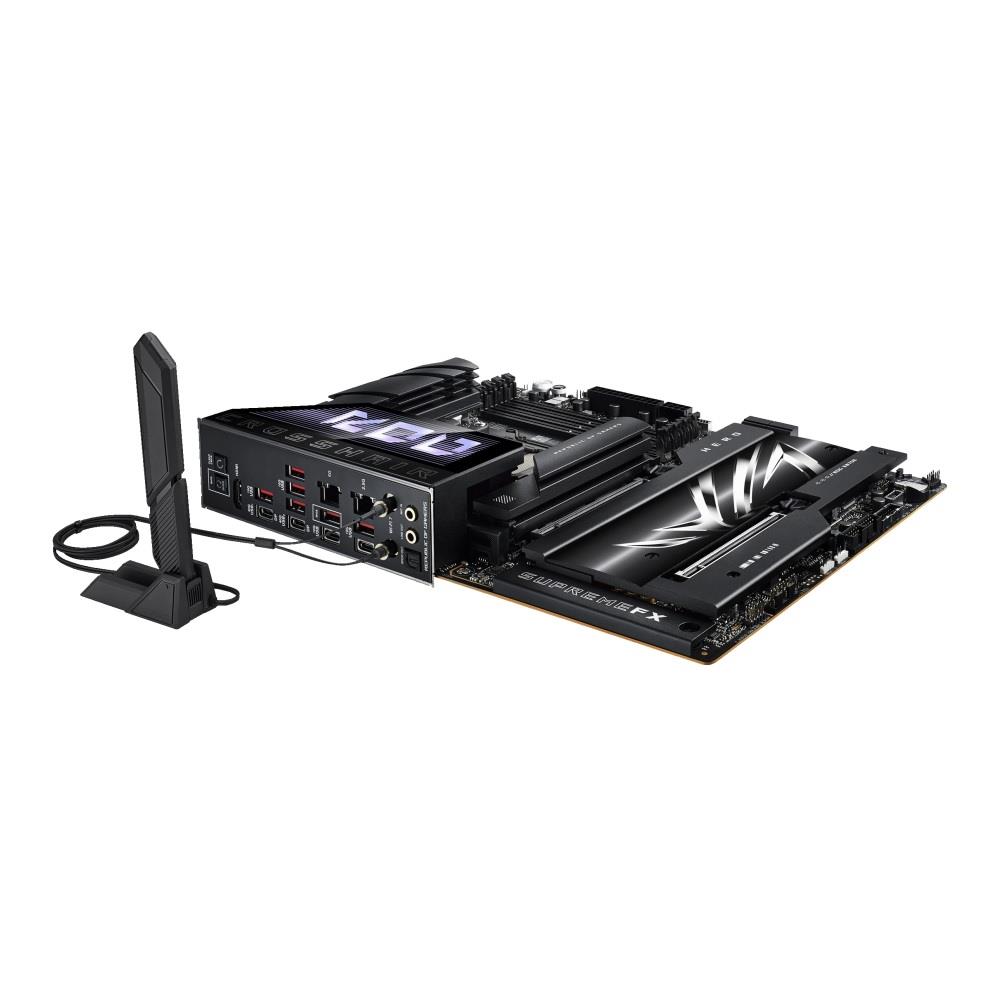

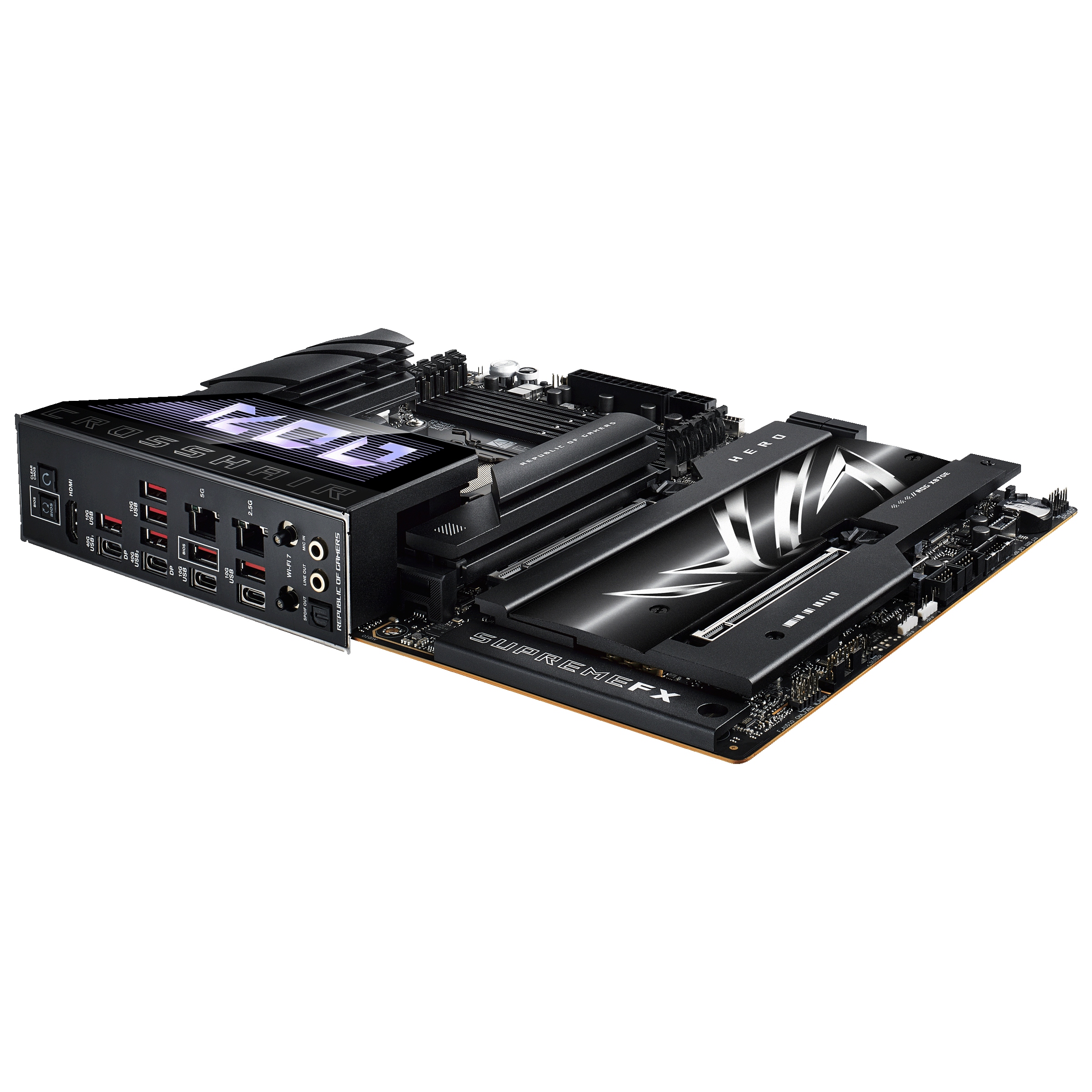

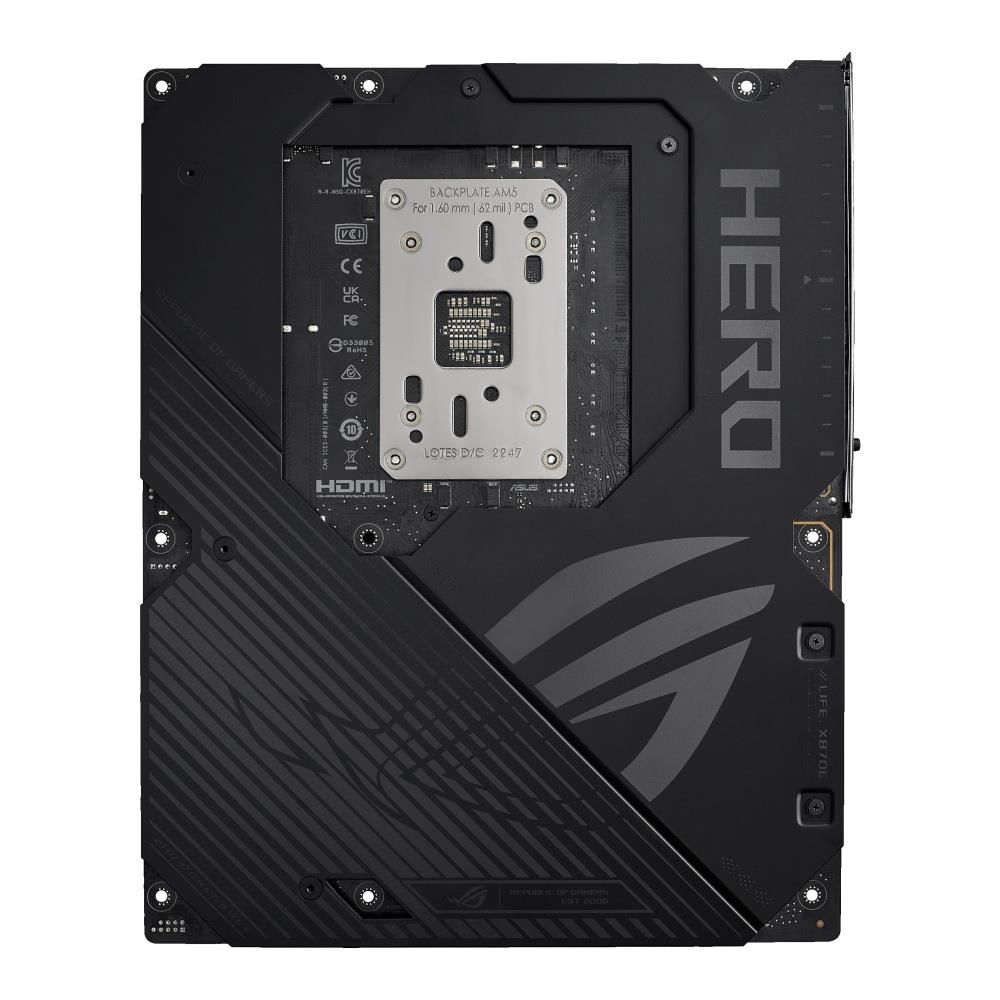

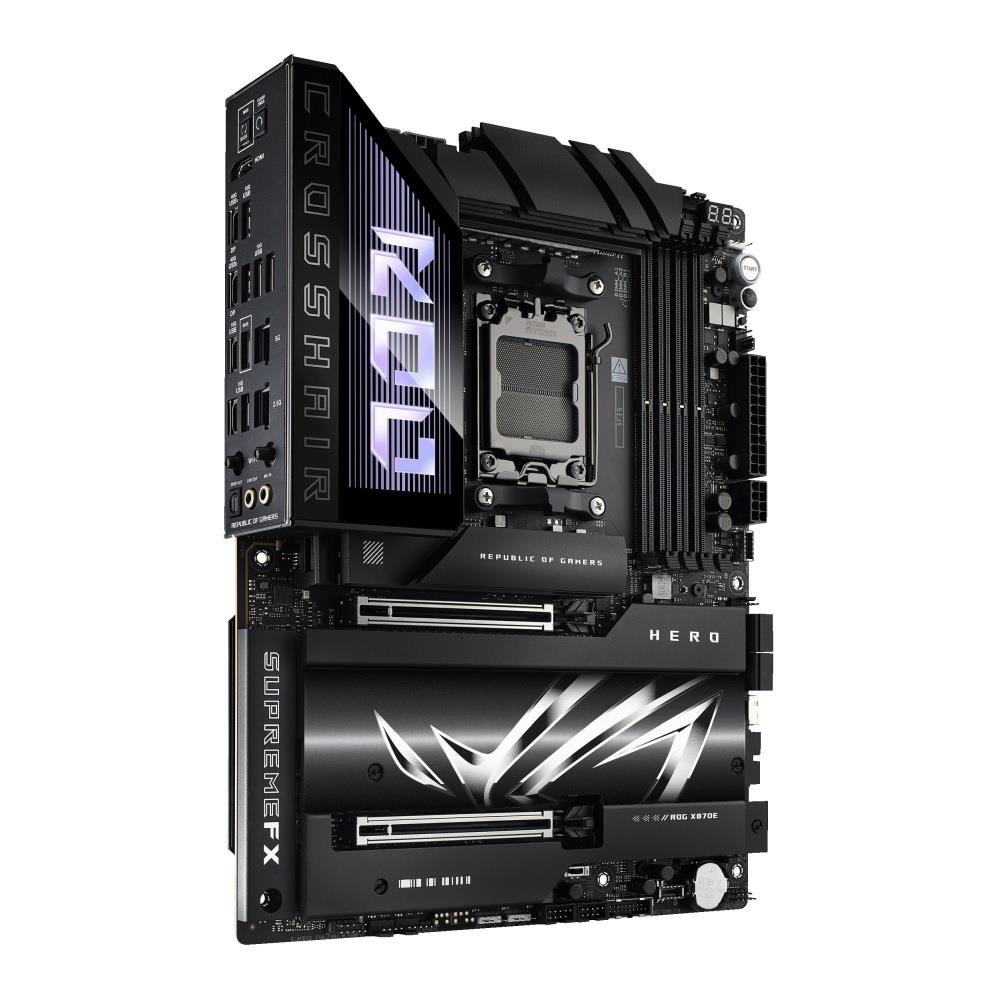

Płyta Asus ROG CROSSHAIR X870E HERO

AMD X870 DDR5 SATA3 M.2 USB4 WiFi BT PCIE5.0 AM5 ATX

Specyfikacja:

Pamięć

• Ilość złącz pamięci DDR5: 4
• Maksymalna wielkość pamięci: 192 GB
• Tryb pracy pamięci RAM: Dual Channel
• Uwagi do pamięci RAM:
• Supports up to:
• - 8200+MT/s(OC) with Ryzen 9000 Series Processors
• - 8600+MT/s(OC) with Ryzen 8000 Series Processors
• - 8000+MT/s(OC) with Ryzen 7000 Series Processors
• ECC and Non-ECC, Un-buffered Memory
• Supports AMD Extended Profiles for Overclocking (EXPO)
• NitroPath DRAM Technology
• ASUS Enhanced Memory Profile (AEMP)
• Supported memory types, data rate (speed), and number of DRAM modules vary
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function

Grafika

• Wbudowana karta graficzna: Brak lub AMD Radeon™ Graphics (zależy od procesora)
• Gniazda karty graficznej:
• HDMI
• 2x USB4 Type-C
• Uwagi do karty graficznej:
• Graphics specifications may vary between CPU types. Please refer to
• AMD CPU specifications
• Supports max. 4K@60Hz as specified in DisplayPort 1.4a
• Supports 4K@60Hz as specified in HDMI 2.1

Dźwięk

• Zintegrowana karta dźwiękowa: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
• Gniazda karty dźwiękowej:
• 2x Audio Jack
• Wyjście optyczne S/PDIF
• Wewnętrzne gniazdo audio przedniego panelu
• Uwagi do karty dźwiękowej:
• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
• High quality 120 dB SNR stereo playback output and 110 dB SNR recording
• Supports up to 32-Bit/384 kHz playback on front panel
• SupremeFX Shielding Technology
• ESS® ES9219 QUAD DAC
• Gold-plated audio jacks
• Premium audio capacitors
• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output
• The LINE OUT port on the rear panel does not support spatial audio
• If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Łączność / komunikacja

• Port LAN:
• 1x 5 Gigabit LAN Realtek®
• 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Intel®)
• Uwagi do karty sieciowej: ASUS LANGuard
• Maksymalna ilość portów USB 2.0: 4
• Maksymalna ilość portów USB 3.x: 14
• Maksymalna ilość portów USB 4.0: 2

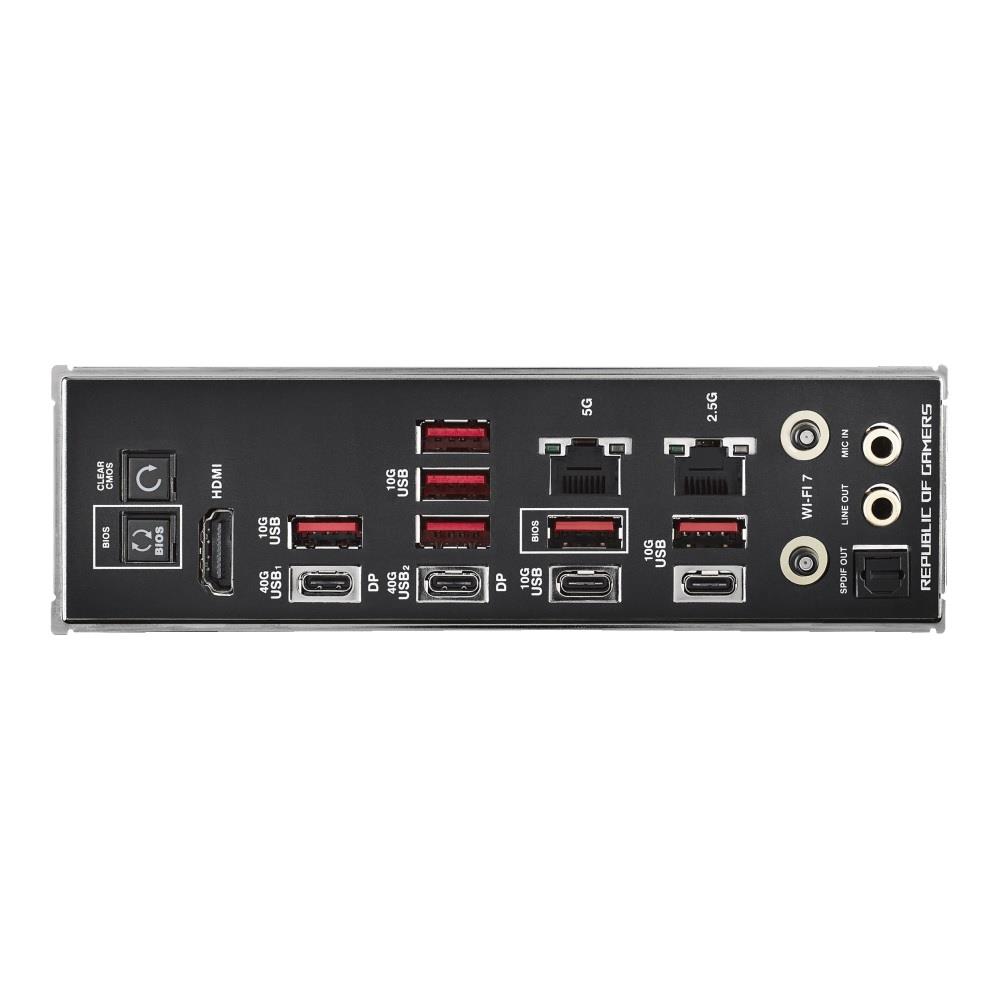

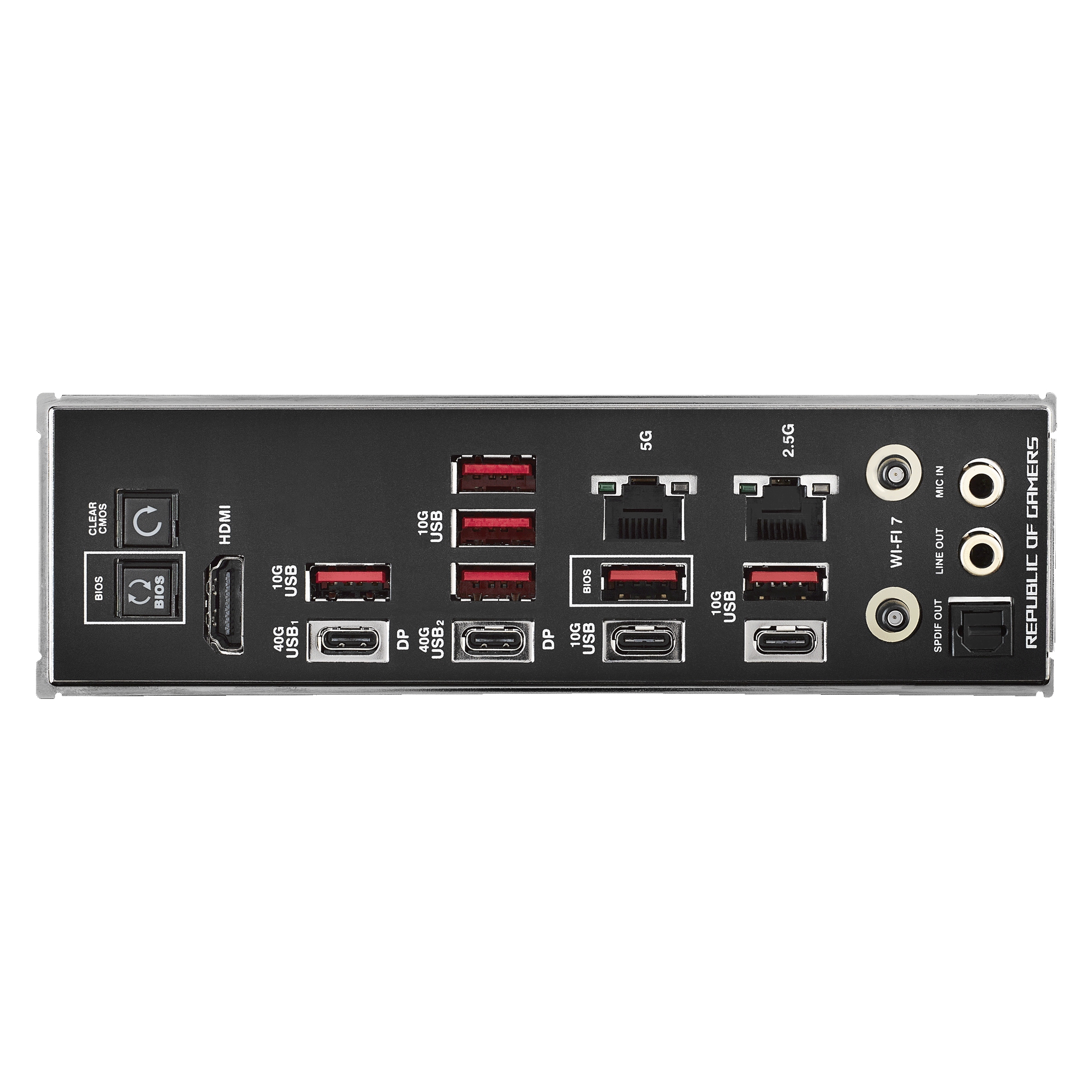

• Porty USB na panelu tylnym: 6x USB 3.1 + 2x USB 3.1 Type-C + 2x USB4 Type-C
• Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 2x USB 3.2 Type-C (2 porty)
• Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
• Port Bluetooth: Bluetooth V5.4
• Uwagi do WiFi / BT:
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate
• Wi-Fi features may vary depending on the operating system
• For Windows 11, Wi-Fi 7 will require 24H2 or later version for full
• functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E
• For Windows 10, please note that no driver is available, refer to the Wi-Fi
• chipset vendor's website for details
• Wi-Fi 6GHz frequency band and bandwidth regulatory may vary
• between countries
• The Bluetooth version may vary, please refer to the Wi-Fi module
• manufacturer's website for the latest specifications

Techniczne

• Gniazdo procesora: Socket AM5
• Obsługiwane typy procesorów: AMD Ryzen™ (AM5)
• Uwagi do procesora: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
• Format płyty: ATX
• Chipset płyty głównej: AMD X870

Złącza

• Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 5x M.2 + RAID 0,1,5,10 + 1x SlimSAS
• Uwagi do kontrolera SATA:
• AMD Ryzen 9000 & 7000 Series Desktop Processors:
• - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• - M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• AMD Ryzen 8000 Series Desktop Processors:
• - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• - M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
• - M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
• AMD X870E Chipset:
• - M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• - M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• - SlimSAS slot supports PCIe 4.0 x4 mode
• - 4 x SATA 6Gb/s ports
• AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID
• 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU
• When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled
• When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4,
• M.2_2 will be disabled

• Uwagi do złącz PCI:
• AMD Ryzen 9000 & 7000 Series Desktop Processors:
• - 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8
• x8/x4/x4 modes)
• - When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will
• will run x8.
• - When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will
• run x4
• AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors:
• - 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 &
• total bandwidth for x8, PCIEx16_2 will be disabled)
• AMD Ryzen™ 8500 & 8300 Series Desktop Processors:
• - 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 &
• total bandwidth for x4, PCIEx16_2 will be disabled)
• Port PS/2: Brak
• Port szeregowy (COM): Brak
• Port równoległy (LPT): Brak
• Inne porty i gniazda:
• Wi-Fi module with an antenna connector
• 4-pin CPU Fan header
• 4-pin CPU OPT Fan header
• 4-pin AIO Pump header
• 4x 4-pin Chassis Fan headers
• W_PUMP+ header
• 3x Addressable Gen 2 header
• Alteration PCIe mode switch
• 10-1 pin System Panel header
• Thermal Sensor header
• LN2 Mode jumper
• FlexKey button
• ReTry button
• Start button
• BIOS FlashBack button
• Clear CMOS button(s)
• Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)

Fizyczne

• Wymiary [S x W] (mm): 305 x 244

BIOS

• BIOS: 256Mb Flash ROM, UEFI AMI BIOS WOL by PME, PXE

Pozostałe parametry

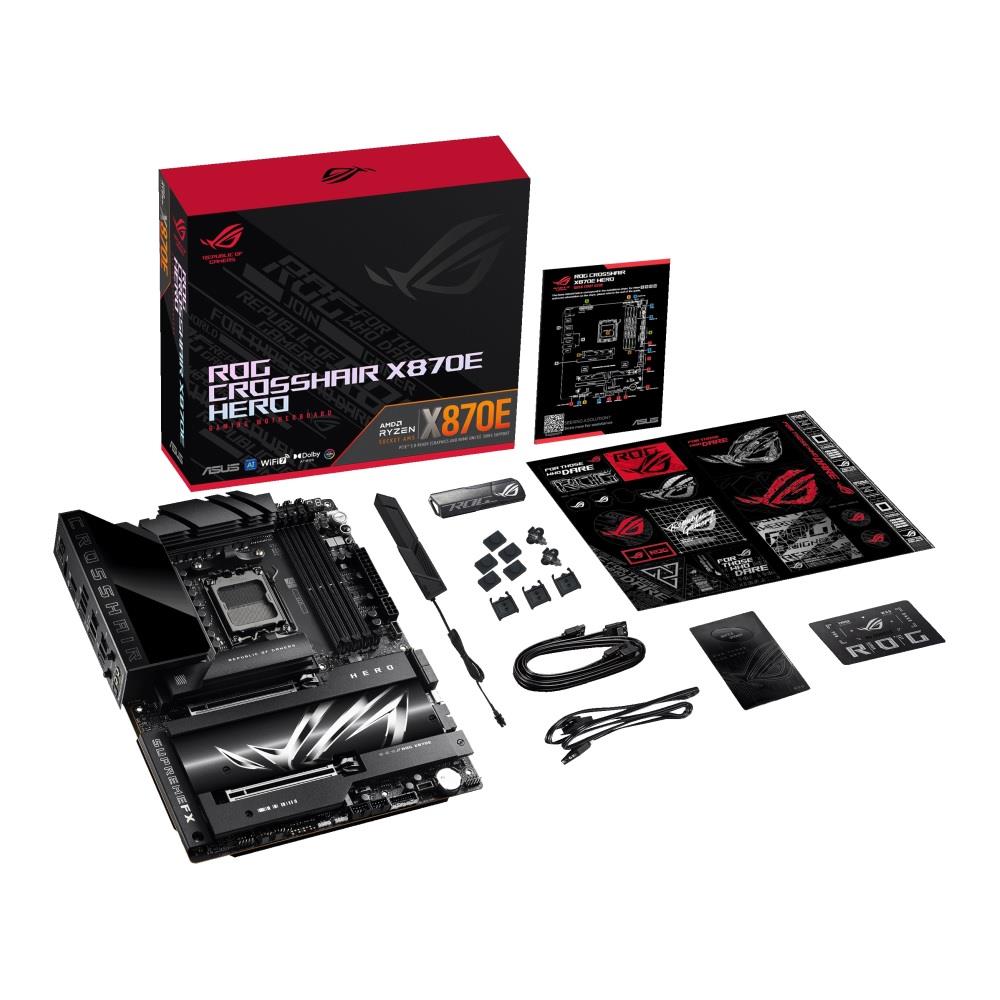

• Wyposażenie dodatkowe:
• 1x ARGB RGB extension cable
• 4x SATA 6Gb/s cables
• 1x ASUS WiFi Q-Antenna
• 1x Q-connector
• 2x M.2 Q-Latch package
• 3x M.2 Q-Slide package
• 5x M.2 rubber package
• 1x ROG stickers
• 1x ROG thank you card
• 1x ROG Bottle Opener
• 1x USB drive with utilities and drivers
• 1x Quick start guide
• Informacje dodatkowe: Operating System: Windows 11
