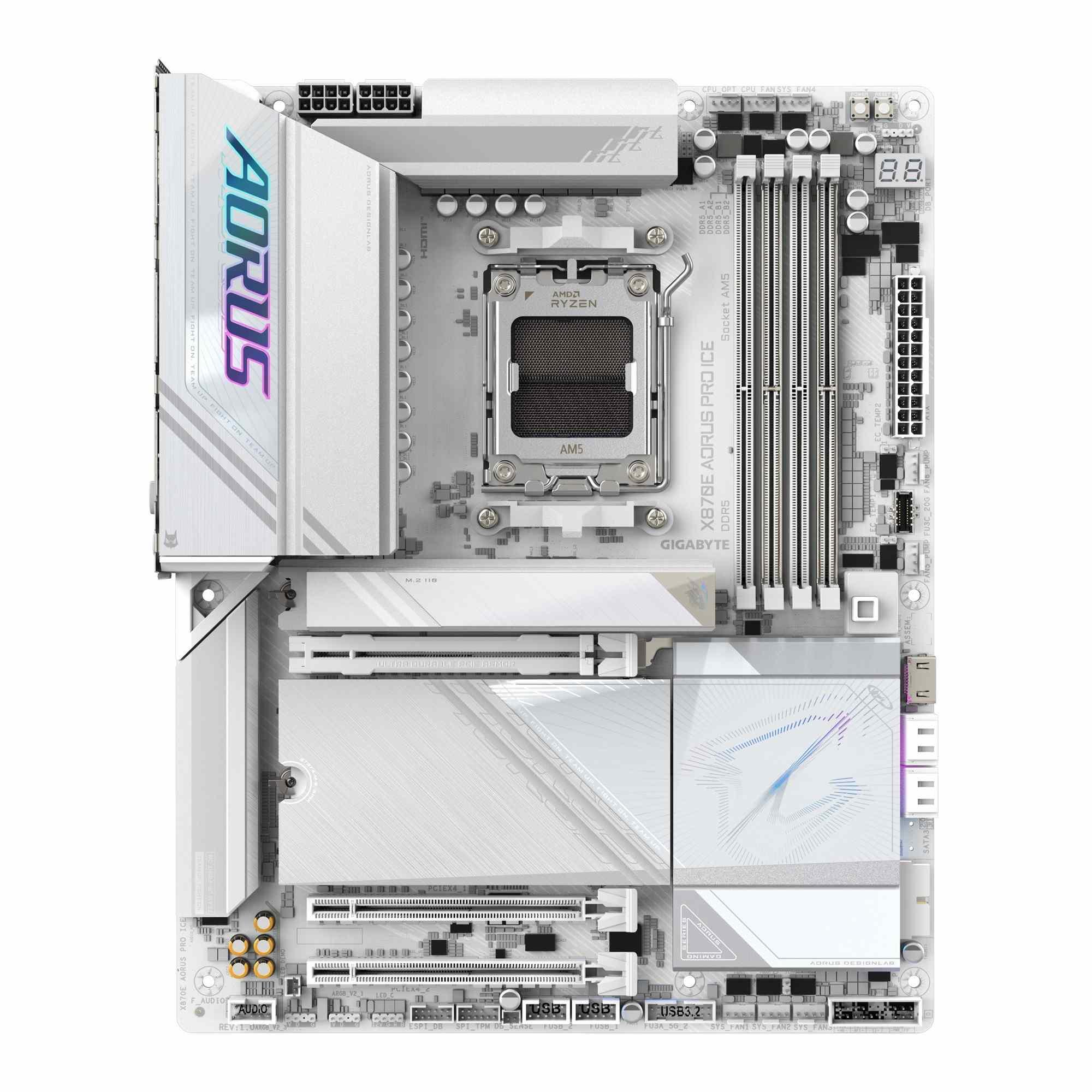

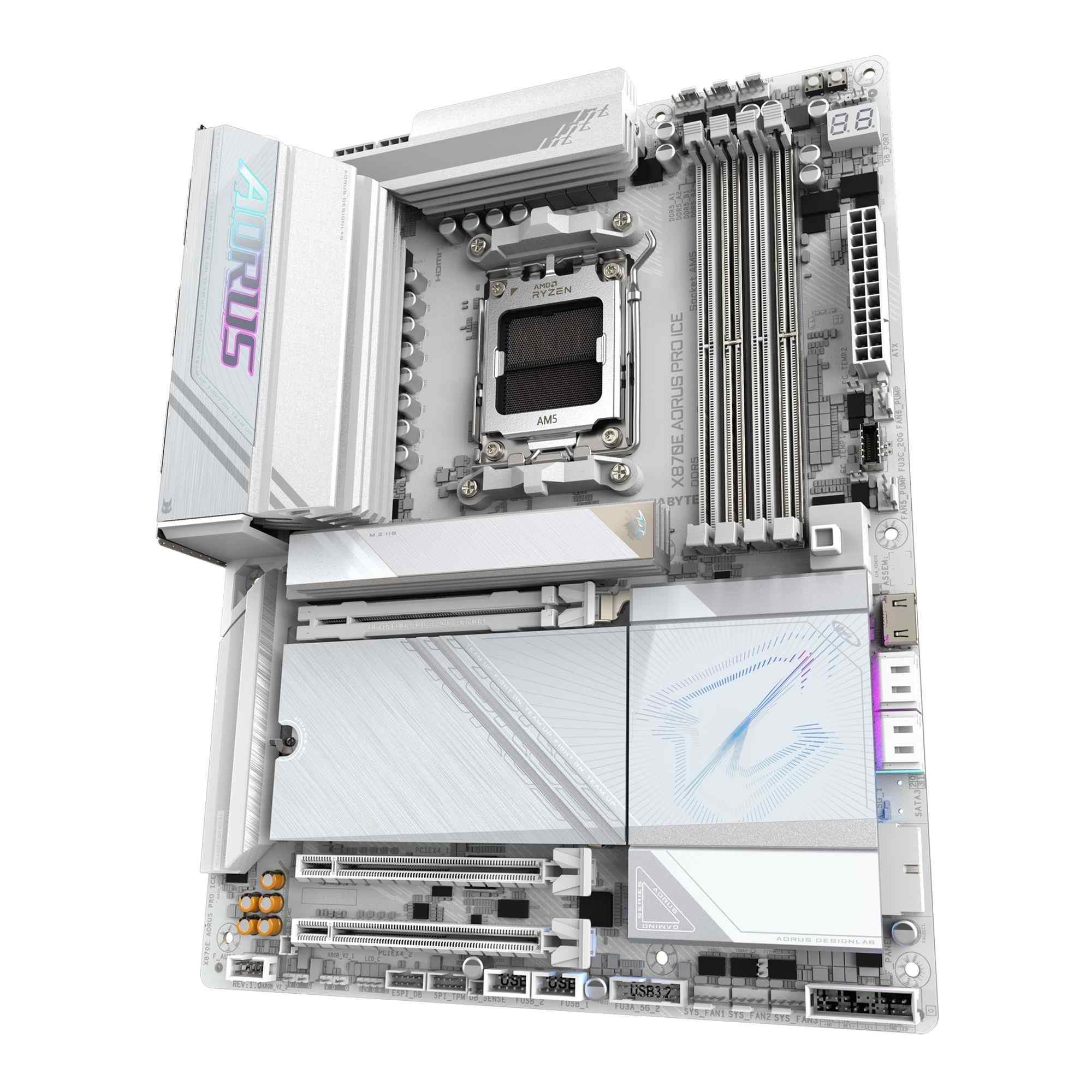

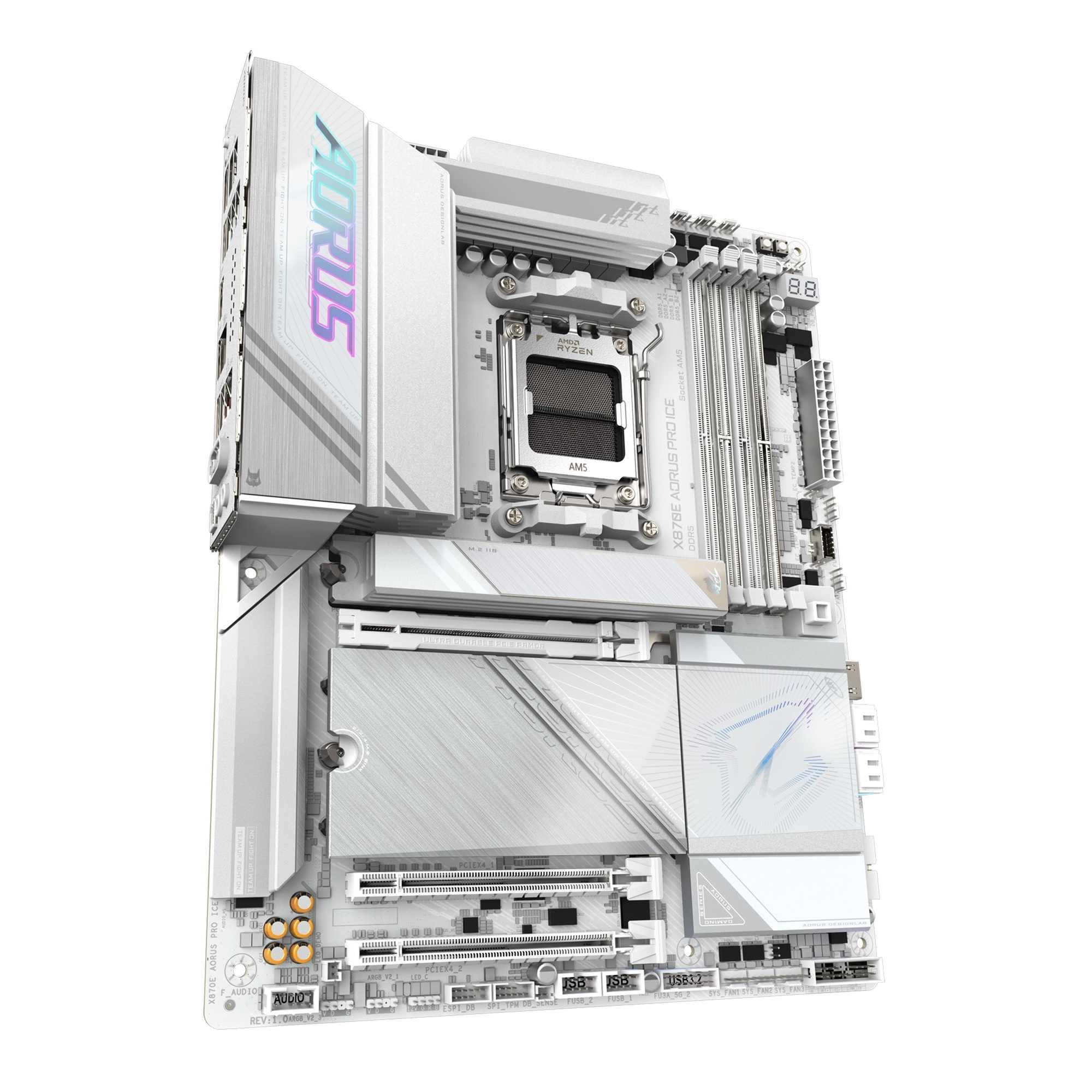

Płyta Gigabyte X870E AORUS PRO ICE /AMD X870/DDR5/SATA3/M.2/USB4/PCIe5.0/WiFi/BT/AM5/ATX

Płyta Gigabyte X870E AORUS PRO ICE AMD X870 DDR5 SATA3 M.2 USB4 PCIe5.0 WiFi BT AM5 ATX

Specyfikacja:

Pamięć

• Ilość złącz pamięci DDR5: 4
• Maksymalna wielkość pamięci: 256 GB
• Tryb pracy pamięci RAM: Dual Channel
• Standard pamięci:
• DDR5-8200 (OC)
• DDR5-8000 (OC)
• DDR5-7800 (OC)
• DDR5-7600 (OC)
• DDR5-7200 (OC)
• DDR5-7000 (OC)
• DDR5-6800 (OC)
• DDR5-6666 (OC)
• DDR5-6600 (OC)
• DDR5-6400 (OC)
• DDR5-6200 (OC)
• DDR5-6000 (OC)
• DDR5-5600 (OC)
• DDR5-5200
• DDR5-4800
• DDR5-4400
• Uwagi do pamięci RAM:
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and
• Extreme Memory Profile (XMP) memory modules

Grafika

• Wbudowana karta graficzna: Brak lub AMD Radeon™ Graphics (zależy od procesora)
• Gniazda karty graficznej:
• 2x USB4 Type-C
• 2x HDMI
• Uwagi do karty graficznej:
• Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia
• USB4 Controller:
• - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video
• outputs and a maximum resolution of 3840x2160@240 Hz
• Support for DisplayPort 1.4 version and HDR
• Integrated Graphics Processor with AMD Radeon Graphics support:
• - 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• Support for HDMI 2.1 version, HDCP 2.3, and HDR
• Support native HDMI 2.1 TMDS compatible ports
• - 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
• Support for HDMI 1.4
• Graphics specifications may vary depending on CPU support

Dźwięk

• Zintegrowana karta dźwiękowa: Realtek ALC1220 7.1 Surround Sound High Definition Audio CODEC
• Gniazda karty dźwiękowej:
• 2x Audio Jack
• Wyjście optyczne S/PDIF
• Uwagi do karty dźwiękowej:
• You can change the functionality of an audio jack using the audio software
• To configure 7.1-channel audio, access the audio software for audio setting

Łączność / komunikacja

• Port LAN: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)
• Maksymalna ilość portów USB 2.0: 6
• Maksymalna ilość portów USB 3.x: 14
• Maksymalna ilość portów USB 4.0: 2

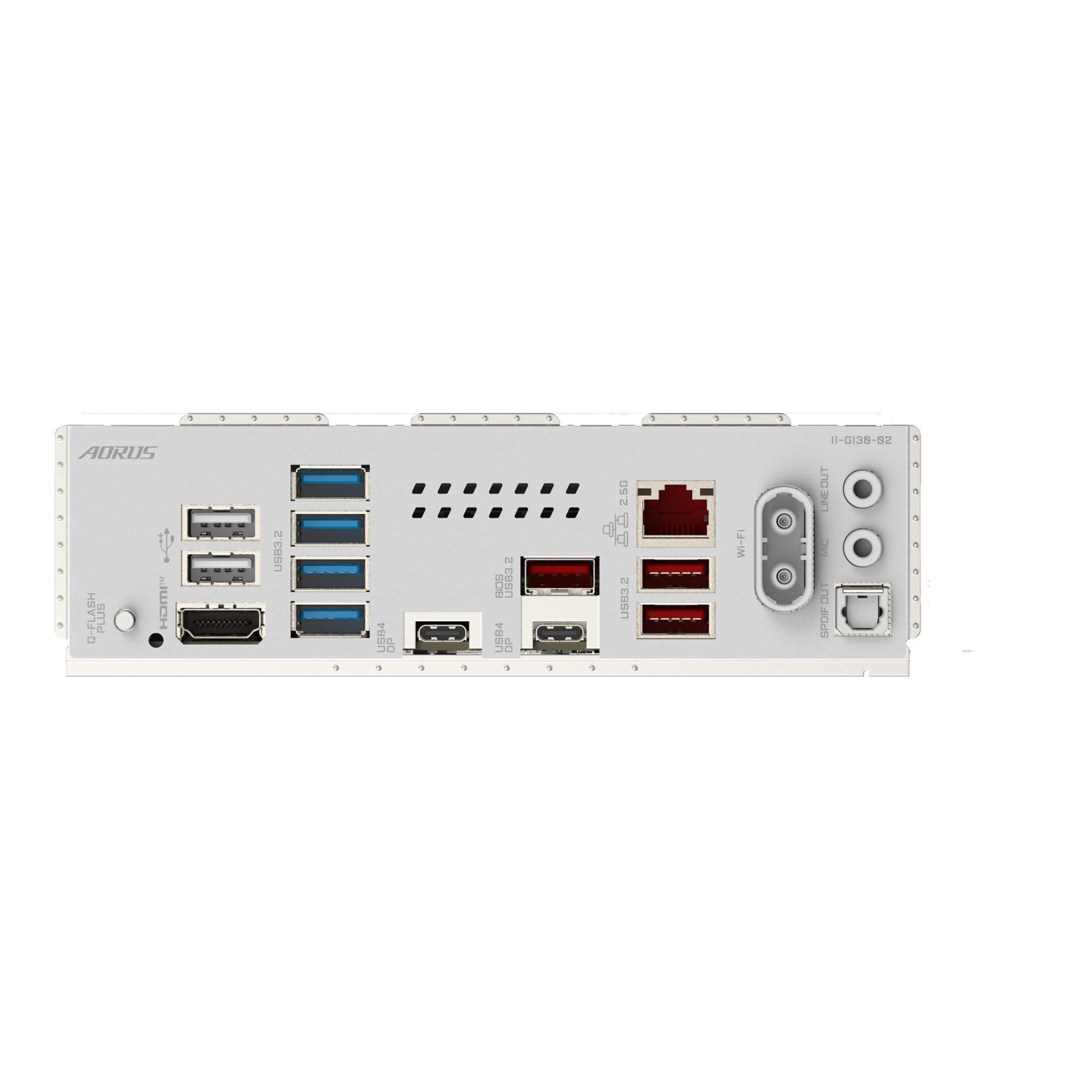

• Porty USB na panelu tylnym: 2x USB 2.0 + 4x USB 3.0 + 3x USB 3.1 + 2x USB4 Type-C
• Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)
• Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
• Port Bluetooth: Bluetooth V5.3
• Uwagi do WiFi / BT:
• Qualcomm Wi-Fi 7 QCNCM865
• - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency ba
• - Support for 11be 320MHz wireless standard
• Actual data rate may vary depending on environment and equipment
• Wi-Fi 7 features require Windows 11 SV3 to function properly; no W10 suppor
• Wi-Fi 7 channels on 6 GHz band availability depends on individual
• country's regulations

Techniczne

• Gniazdo procesora: Socket AM5
• Obsługiwane typy procesorów: AMD Ryzen™
• Uwagi do procesora: Support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
• Format płyty: ATX
• Chipset płyty głównej: AMD X870

Złącza

• Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s + 4x M.2
• Uwagi do kontrolera SATA:
• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,
• M key, type 25110/22110/2580/2280 SSDs:
• - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
• - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
• - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
• 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU,
• supporting Socket 3, M key, type 22110/2280 SSDs:
• - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
• The M2B_CPU and M2C_CPU connectors will become unavailable when using the
• AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 Processors
• 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3,
• M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
• RAID 5 is only available on AMD Ryzen 9000 Series Processors
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices
• Złącza PCI Express x16: 3
• Uwagi do złącz PCI:
• 1x PCI Express x16 slot (PCIEX16), integrated in the CPU:
• - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
• - The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slo
• When theM2B_CPU orM2C_CPU connector is populated, the PCIEX16 slot
• operates at up to x8 mode
• AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
• AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
• (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only
• one graphics card is to be installed, be sure to install it in the PCIEX16
• Chipset:
• - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1
• - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2

• Port PS/2: Brak
• Port szeregowy (COM): Brak
• Port równoległy (LPT): Brak
• Inne porty i gniazda:
• CPU fan header
• CPU fan/water cooling pump header
• 4x system fan headers
• 2x system fan/water cooling pump headers
• 3x Addressable RGB Gen2 LED strip headers
• RGB LED strip header
• Noise detection header
• Gniazdo modułu TPM
• 2x temperature sensor headers
• 2x SMA antenna connectors (2T2R)
• Power-on button(s)
• Reset button
• Reset jumper
• Clear CMOS jumper
• Q-Flash Plus button
• Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin)

Fizyczne

• Wymiary [S x W] (mm): 305 x 244

BIOS

• BIOS: 256 Mbit flash AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Pozostałe parametry

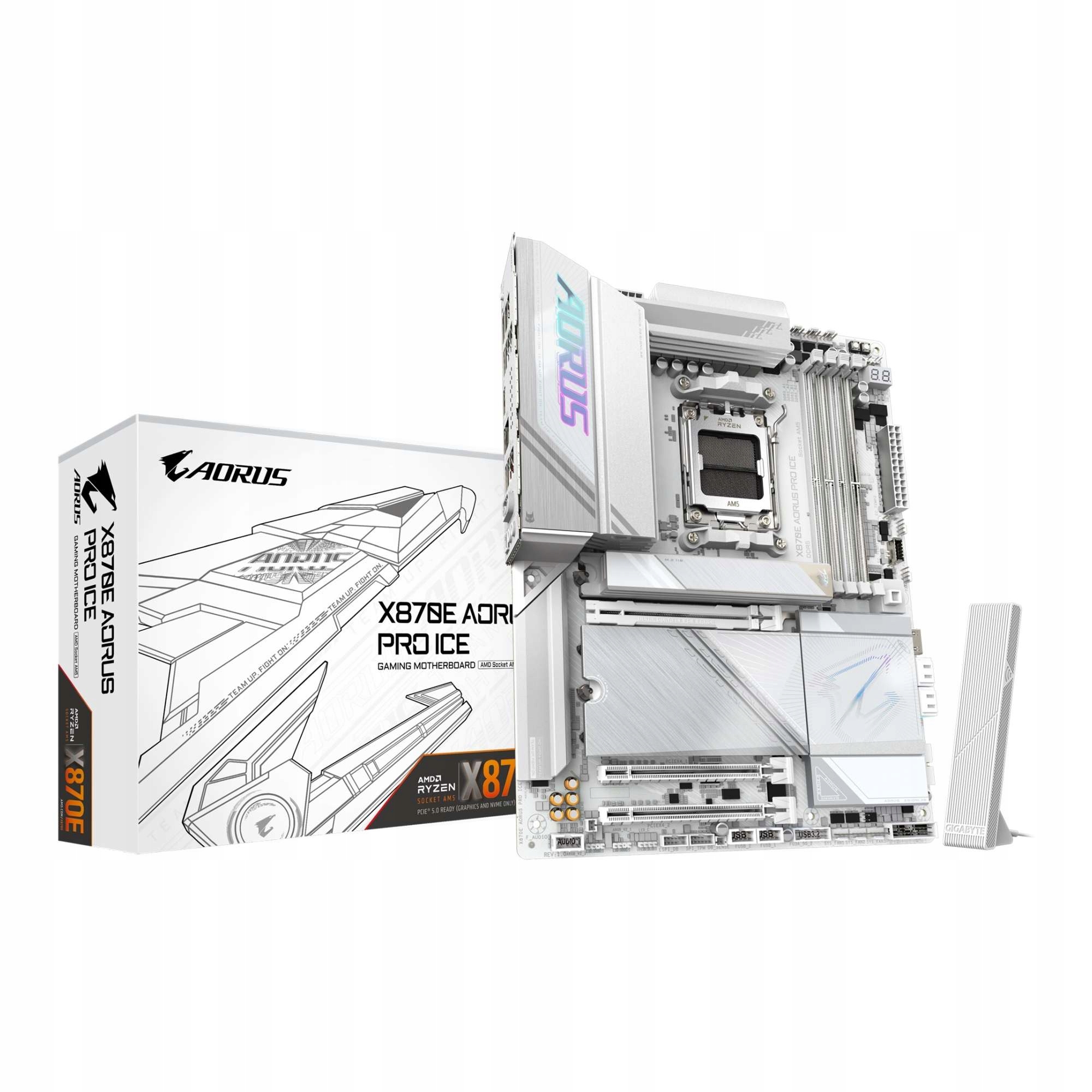

• Opakowanie: BOX
• Zawiera baterię / akumulator: Tak
• Informacje dodatkowe:
• Bundled Software
• - Norton® Internet Security (OEM version)
• - LAN bandwidth management software
• System operacyjny: Support for Windows 11 64-bit
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0
• / GC-TPM2.0 SPI V2 module only
