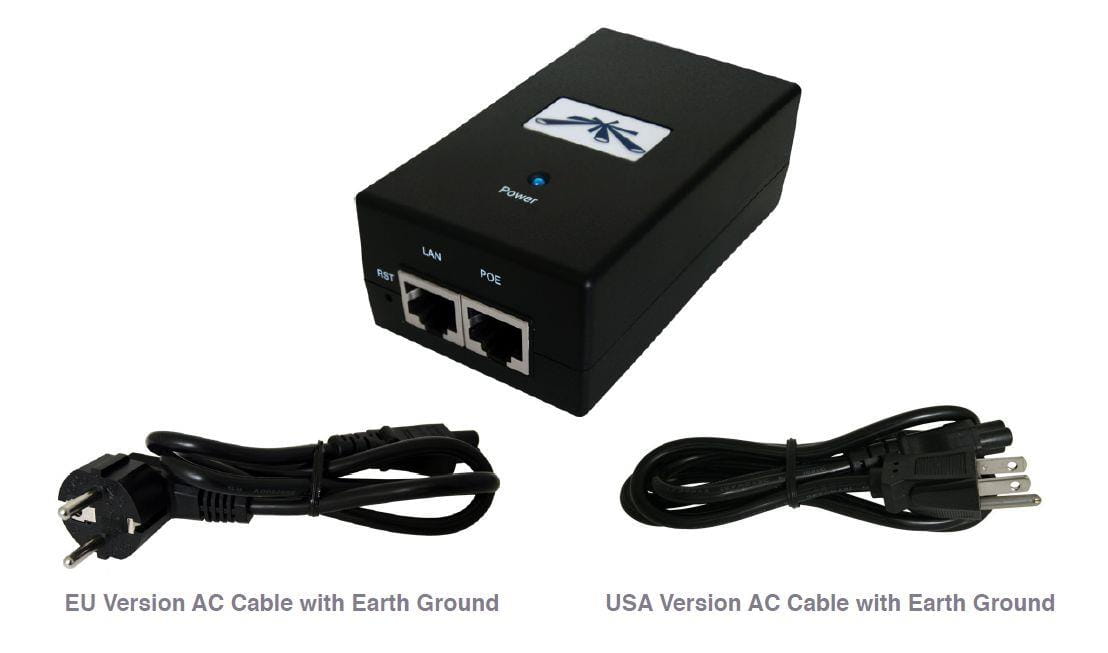

Zasilacz UBIQUITI Passive PoE 24V 0.5A 12W Gigabit
Dostępność:
2 szt.
Wysyłka w:
Natychmiast
Opis
Zasilacz UBIQUITI Passive PoE 24V 0.5A 12W Gigabit
Informacje dodatkowe
2-Pair Powering : Pins 4, 5 (+) and Pins 7, 8 (-), AC Cable with Earth Ground : USA, EU, AR, BR, UL, CCC, Mexico, AC Connector : IEC-320 C6, Clamping Protection : 11V Data, 60V Power, Compliance : IEC 60950-1:2005+A1;UL60950-1EN55022:2010;EN55024:2010 FCC B, Data IN / POE : RJ45 Shielded Socket, Dimensions : 87 x 84 x 29.2 mm, Efficiency : 75+%, Gigabit LAN Port : Yes, Input Current : 0.3A @ 120VAC, 0.2A @ 240VAC, Input Voltage : 90-260VAC @ 47-63 Hz, Inrush Current : <30A Peak @120VAC, <60A Peak @ 230VAC, LAN Activity Indicator : No, Line Regulation : ± 1%, Load Regulation : ± 3%, Max. Surge Discharge : 1500A (8/20µS) Power, Operating Humidity : 35 to 95% Non-Condensing, Operating Temperature : 0 to 40° C (32 to 104° F), Output Ripple : 1% Max., Output Voltage : 24VDC @ 0.5A, Peak Pulse Current : 36A (10/1000µS) Data, Remote Reset : Yes, Reset Button : Yes, Response Time : <1 nS, Shunt Capacitance : <5 pf data, Storage Temperature : -30 to 70°C (-22 to 158° F), Surge Protection : Difference and Common Mode, Switching Frequency : 50 kHz, Weight : 99.4 g (3.51 g)
Informacje dodatkowe
2-Pair Powering : Pins 4, 5 (+) and Pins 7, 8 (-), AC Cable with Earth Ground : USA, EU, AR, BR, UL, CCC, Mexico, AC Connector : IEC-320 C6, Clamping Protection : 11V Data, 60V Power, Compliance : IEC 60950-1:2005+A1;UL60950-1EN55022:2010;EN55024:2010 FCC B, Data IN / POE : RJ45 Shielded Socket, Dimensions : 87 x 84 x 29.2 mm, Efficiency : 75+%, Gigabit LAN Port : Yes, Input Current : 0.3A @ 120VAC, 0.2A @ 240VAC, Input Voltage : 90-260VAC @ 47-63 Hz, Inrush Current : <30A Peak @120VAC, <60A Peak @ 230VAC, LAN Activity Indicator : No, Line Regulation : ± 1%, Load Regulation : ± 3%, Max. Surge Discharge : 1500A (8/20µS) Power, Operating Humidity : 35 to 95% Non-Condensing, Operating Temperature : 0 to 40° C (32 to 104° F), Output Ripple : 1% Max., Output Voltage : 24VDC @ 0.5A, Peak Pulse Current : 36A (10/1000µS) Data, Remote Reset : Yes, Reset Button : Yes, Response Time : <1 nS, Shunt Capacitance : <5 pf data, Storage Temperature : -30 to 70°C (-22 to 158° F), Surge Protection : Difference and Common Mode, Switching Frequency : 50 kHz, Weight : 99.4 g (3.51 g)
Dane techniczne
| Baza SCIP | Nie |
| Nazwa typu | Zasilacze sieciowe |
| Okres rękojmi w miesiącach | 24 |
| Miejsce serwisowania | Serwis zewnętrzny |
| Strona o towarze | http://www.ubnt.com/airmax#poe |
